Ducati 049 Build Part 8: Forks

Ducati 049 Build Part 8: Forks, Frustration, and an Italian Plot Twist

Welcome aboard, just mind the oil stains. This part of the Ducati 049 build had everything, a bit of progress, a bit of confusion, and one of those classic moments where the bike reminds you who’s really in charge.

This time, it was all about the front forks. And what started as a “quick refresh” turned into a proper head scratcher.

One Good Fork, One… Not So Much

Before we got stuck in, the forks were giving us mixed signals. One felt absolutely fine, nice and firm with decent rebound. The other? Soft as anything, a slight leak, and about as much rebound as a soggy sponge.

No prizes for guessing which one we decided to pull apart first.

We tracked down new fork oil seals and the correct oil for the Cagiva setup, which felt like a win in itself. There is always that small victory when you actually find the right parts without falling down a three hour forum rabbit hole.

Stripping It Down

The left fork came apart surprisingly easily. No drama, no seized bolts, no need for colourful language. That alone felt suspicious.

Everything was stripped, cleaned out properly, and given a fresh coat of paint to bring it back to life. It is always satisfying seeing tired parts start to look like they belong on a bike again, rather than at the bottom of a shed.

Then came the rebuild.

The Guesswork Phase

Here is where things started to wobble a bit. We struggled to find solid information on the correct amount of fork oil. Plenty of opinions, plenty of “that should do it”, but nothing concrete.

So, we made an educated guess. You can probably see where this is going.

Everything went back together, bolts tightened, seals seated, job done. Or so we thought.

The result? Absolutely terrible.

There was next to no resistance, the fork would just dive and stop dead, and rebound was basically non-existent. It felt completely wrong, like something was missing.

Wait… Where’s the Spring?

When we first stripped the fork, we noticed something odd. There was no internal spring.

At the time, we had a bit of a laugh about it. Had someone pinched it for another project? Was it hiding somewhere? Had we just missed it?

Turns out, that question was more important than we realised.

Once the fork was back together and clearly not behaving, we knew we had to dig deeper.

Back to the Internet We Go

A few more hours of proper digging later, we finally found what we needed.

First, the correct oil volume. 300ml. Not “about that much”, not “fill it until it feels right”. An actual number. Lovely stuff.

But the real gem of information?

In true Italian fashion, the forks on the Prima and Mito only have a spring in one side.

Yes, really.

So the fork we had stripped, the one with no spring, was actually… correct.

You have to love it. Or at least learn to laugh about it.

Round Two, Let’s Do It Properly

Armed with the right info, we went back in.

The left fork got exactly 300ml of oil. Straight away, it sounded and felt better. You could tell it was actually doing something now, instead of just giving up halfway through its travel.

Next up was the right fork, the one we had not touched yet.

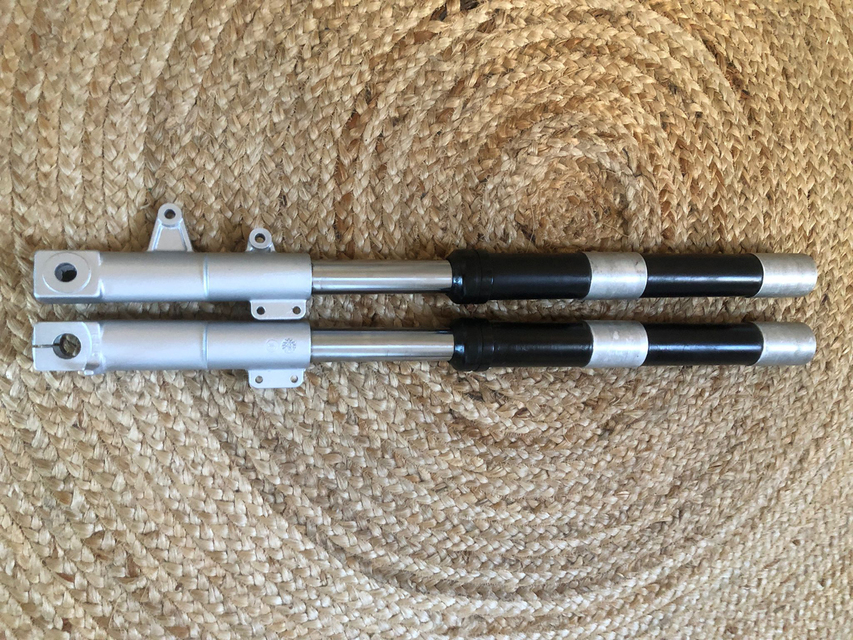

This one did have the spring, which finally made everything make sense. It got the same treatment, stripped down, cleaned properly, fresh paint, new seals, and new dust caps.

Back together it went, this time with a bit more confidence and slightly less guesswork.

Finally, That Feels Right

With both forks rebuilt and back on the bike, the difference was night and day.

Proper resistance, smooth movement, and actual rebound. You know, the kind of things you want from suspension.

It is one of those jobs that fights you all the way, then suddenly clicks into place and reminds you why you bother.

We have all been there. No such thing as a daft question, just the wrong amount of fork oil and a missing spring that turns out not to be missing after all.

Another Step Closer

That is another big piece of the Ducati 049 puzzle sorted. Slowly but surely, it is coming together.

And if nothing else, we have learned two things. Always double check your oil levels, and never assume Italian engineering follows the same rules as everything else.

If you are working on something similar, or just trying to figure out why your forks feel a bit “off”, hopefully this helps save you a bit of time and head scratching.

As always, if you have done something similar, or have your own garage stories, jump into the Lid Life community and share it. That is what it is all about, mates helping mates, learning as we go, and having a laugh along the way :contentReference[oaicite:0]{index=0}

Next up… well, we will see what decides to fight us next.
